Chippendale Style Entertainment Cabinet

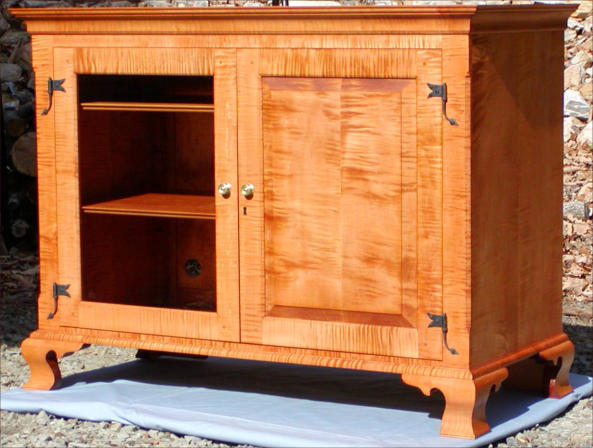

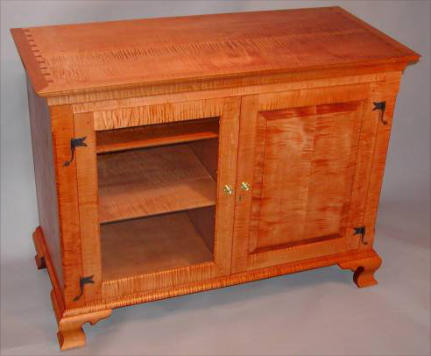

This tiger maple entertainment center was designed and built in the style of a Chippendale cabinet. The
dimensions and interior partitions were configured to allow a large TV (most 65" TV's and smaller) to be placed on
top with storage for various audio and video components in the cabinet. The overall size of the cabinet can be
customized to your space requirements and equipment needs.
Some of the design features of this cabinet include adjustable shelves, hand forged rat-tail hinges, chamfered
corners with hand carved lamb's tongue details, ventilation for equipment, and removable back panels with wire
routing access holes.
This cabinet could easily be built from Maple, Walnut, Mahogany or Cherry. The base and crown molding
profiles, as well as the door style and overall size could be modified for a different style or purpose. In addition,
the cabinet could be built with matching glass doors, matching solid wood doors, or a fabric panel door to hide a
subwoofer, etc. This type of cabinet would also work well in a dining room setting as a buffet.
Whispering Woodworks
David S. Beach
Fine Custom Furniture and Reproductions
Leesburg, VA
703-737-2126
These pieces are examples of the type of work I do.
Let me know what I can build for you.
Features
•
The dimensions of the unit are approximately 48.5" long x 22.5" deep x 36.5" high - these dimensions can
be customized to meet specific requirements.
•
The case construction is hand cut dovetail joints with sliding dovetails to attach the center divider.
•
The frame and panel doors feature pinned mortise and tenon construction
•
Hand forged iron rat-tail hinges, lockable doors and solid brass reproduction door pulls.
•
Chamfered corners of case feature hand carved lamb's tongue ends.
•

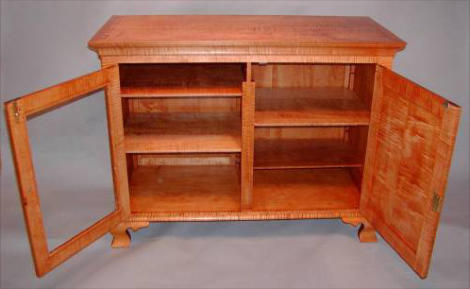

Adjustable shelves provide a wide range of positions for equipment and storage options.
•
The back is divided into two removable panels with wire access provided.
•
Ogee bracket foot base.
•
The piece was stained to enhance the figure of the tiger maple and finished with a hand rubbed wiping
varnish, buffed and waxed to a warm satiny finish.

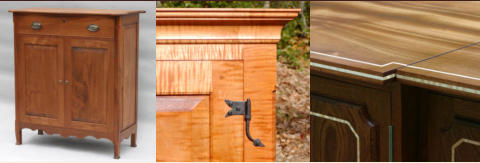

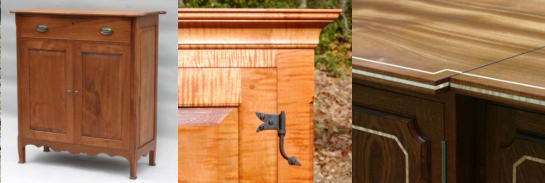

Detail views showing hand forged hinges, carved front
corners and ogee bracket feet.
